Leveraging the U.S. Gridded Anthropogenic Methane Emissions Inventory for Monitoring Trends in Methane Emissions

Spatially disaggregated 0.1°x 0.1° annual maps of U.S. anthropogenic methane emissions, consistent with the U.S. Inventory of Greenhouse Gas Emissions and Sinks
Author

Siddharth Chaudhary, Vishal Gaur, Farnaz Bayat

Access this Notebook

You can launch this notebook in the US GHG Center JupyterHub by clicking the link below. If you are a new user, you should first sign up for the hub by filling out this request form and providing the required information.

Access the U.S. Gridded Anthropogenic Methane Emissions Inventory notebook in the US GHG Center JupyterHub.

Table of Contents

Data Summary and Application

  • Spatial coverage: Contiguous United States
  • Spatial resolution: 0.1° x 0.1°
  • Temporal extent: 2012 - 2020
  • Temporal resolution: Annual
  • Unit: Megagrams of methane per square kilometer per year
  • Utility: Climate Research

For more, visit the U.S. Gridded Anthropogenic Methane Emissions Inventory data overview page.

Approach

  1. Identify available dates and temporal frequency of observations for the given collection using the GHGC API /stac endpoint. The collection processed in this notebook is the gridded methane emissions data product.
  2. Pass the STAC item into the raster API /collections/{collection_id}/items/{item_id}/tilejson.json endpoint.
  3. Using folium.plugins.DualMap, we will visualize two tiles (side-by-side), allowing us to compare time points.
  4. After the visualization, we will perform zonal statistics for a given polygon.

About the Data

U.S. Gridded Anthropogenic Methane Emissions Inventory

The gridded EPA U.S. anthropogenic methane greenhouse gas inventory (gridded GHGI) includes spatially disaggregated (0.1 deg x 0.1 deg or approximately 10 x 10 km resolution) maps of annual anthropogenic methane emissions (for the contiguous United States (CONUS)), consistent with national annual U.S. anthropogenic methane emissions reported in the U.S. EPA Inventory of U.S. Greenhouse Gas Emissions and Sinks (U.S. GHGI).

This V2 Express Extension dataset contains methane emissions provided as fluxes, in units of molecules of methane per square cm per second, for over 25 individual emission source categories, including those from agriculture, petroleum and natural gas systems, coal mining, and waste. The data have been converted from their original NetCDF format to Cloud-Optimized GeoTIFF (COG) for use in the US GHG Center, thereby enabling user exploration of spatial anthropogenic methane emissions and their trends.

The gridded dataset currently includes 34 data layers. The first data layer includes annual 2012-2020 gridded methane emissions fluxes from all anthropogenic sources of methane in the U.S. GHGI (excluding Land Use, Land-Use Change and Forestry (LULUCF) sources, which are not included in the gridded GHGI). The next six data layers include annual 2012-2020 gridded methane fluxes from sources within the aggregate Agriculture, Natural Gas, Petroleum, Waste, Industry, and ‘Other’ source categories. The remaining 27 data layers include annual 2012-2020 gridded methane emissions fluxes from individual emission sectors within each of the aggregate categories.

For more information regarding this dataset, please visit the U.S. Gridded Anthropogenic Methane Emissions Inventory data overview page.

Terminology

Navigating data via the GHGC API, you will encounter terminology that is different from browsing in a typical filesystem. We’ll define some terms here which are used throughout this notebook. - catalog: All datasets available at the /stac endpoint - collection: A specific dataset, e.g. U.S. Gridded Anthropogenic Methane Emissions Inventory - item: One granule in the dataset, e.g. one yearly file of methane emissions - asset: A variable available within the granule, e.g. methane emissions from waste, coal, or agriculture - STAC API: SpatioTemporal Asset Catalogs - Endpoint for fetching the data itself - Raster API: Endpoint for fetching data imagery

Install the Required Libraries

Required libraries are pre-installed on the GHG Center Hub, except the tabulate library. If you need to run this notebook elsewhere, please install the libraries by running the following command line:

%pip install requests folium rasterstats pystac_client pandas matplotlib tabulate –quiet

# Import the following libraries
# For fetching from the Raster API
import requests
# For making maps
import folium
import folium.plugins
from folium import Map, TileLayer
# For talking to the STAC API
from pystac_client import Client
# For working with data
import pandas as pd
# For making time series
import matplotlib.pyplot as plt
# For formatting date/time data
import datetime
# Custom functions for working with GHGC data via the API
import ghgc_utils

Query the STAC API

STAC API Collection Names

Now, you must fetch the dataset from the STAC API by defining its associated STAC API collection ID as a variable. The collection ID, also known as the collection name, for the U.S. Gridded Anthropogenic Methane Emissions Inventory dataset is epa-ch4emission-yeargrid-v2express*

**You can find the collection name of any dataset on the GHGC data portal by navigating to the dataset landing page within the data catalog. The collection name is the last portion of the dataset landing page’s URL, and is also listed in the pop-up box after clicking “ACCESS DATA.”*

# Provide the STAC and RASTER API endpoints
# The endpoint is referring to a location within the API that executes a request on a data collection nesting on the server.

# The STAC API is a catalog of all the existing data collections that are stored in the GHG Center.
STAC_API_URL = "https://earth.gov/ghgcenter/api/stac"

# The RASTER API is used to fetch collections for visualization
RASTER_API_URL = "https://earth.gov/ghgcenter/api/raster"

# The collection name is used to fetch the dataset from the STAC API. First, we define the collection name as a variable
# Name of the collection for CarbonTracker-CH₄ Isotopic Methane Inverse Fluxes
collection_name = "epa-ch4emission-yeargrid-v2express"
# Fetch the collection from the STAC API using the appropriate endpoint
# The 'pystac_client' library makes an HTTP request possible
catalog = Client.open(STAC_API_URL)
collection = catalog.get_collection(collection_name)

# Print the properties of the collection to the console
collection

Next, you will examine the contents of the collection under the temporal variable. You’ll see that the data is available from January 2012 to December 2020. By looking at the dashboard:time density, you can observe that the periodic frequency of these observations is yearly.

# Print the number of items
items = list(collection.get_items())  # Convert the iterator to a list
print(f"Found {len(items)} items")
Found 9 items
# The search function allows us to look for data within a specific time range, e.g. 2012.
search = catalog.search(
    collections=collection_name,
    datetime=['2012-01-01T00:00:00Z','2012-12-31T00:00:00Z']
)
# Take a look at the items we found
for item in search.item_collection():
    print(item)
<Item id=epa-ch4emission-yeargrid-v2express-2012>
# Examine the first item in the collection
# Keep in mind that a list starts from 0, 1, 2... therefore items[0] is referring to the first item in the list/collection
items[0]
# Restructure our items into a dictionary where keys are the datetime items so we can query more easily by date/time, e.g. "2020"
items_dict = {item.properties["datetime"][:4]: item for item in collection.get_items()}
# Before we go further, let's pick which asset to focus on for the remainder of the notebook.
# We'll focus on emissions from coal mines in this notebook, so our asset of interest is:
asset_name = "total-coal-mines"

Creating Maps Using Folium

In this notebook, you will explore the impacts of methane emissions by examining changes over time. You will visualize the outputs on a map using folium.

Fetch Imagery from Raster API

Here we get information from the Raster API which we will add to our map in the next section.

# Specify two date/times that you would like to visualize, using the format of items_dict.keys()
dates = ['2018','2012']

Below, we use some statistics of the raster data to set upper and lower limits for our color bar. These are saved as the rescale_values, and will be passed to the Raster API in the following step(s).

# Extract collection name and item ID for the first date
observation_date_1 = items_dict[dates[0]]
collection_id = observation_date_1.collection_id
item_id = observation_date_1.id
# Select relevant asset
object = observation_date_1.assets[asset_name]
raster_bands = object.extra_fields.get("raster:bands", [{}])
# Print the raster bands' information
raster_bands
[{'scale': 1.0,
  'offset': 0.0,
  'sampling': 'area',
  'data_type': 'float32',
  'histogram': {'max': 1642.84814453125,
   'min': -9999.0,
   'count': 11.0,
   'buckets': [243327.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 1663.0, 10.0]},
  'statistics': {'mean': -9930.62109375,
   'stddev': 824.6806640625,
   'maximum': 1642.84814453125,
   'minimum': -9999.0,
   'valid_percent': 0.0004081632653061224}}]
# -9999.0 is the value for missing data, which mucks up our ability to use the mean or stddev for a colorbar range.
# Instead we'll just use the maximum value, and make the minimum colorbar value zero.
rescale_values = {
    "max": raster_bands[0]['statistics']['maximum'],
    "min": 0,
}

print(rescale_values)
{'max': 1642.84814453125, 'min': 0}

Now, you will pass the item id, collection name, asset name, and the rescale values to the Raster API endpoint. This step is done twice, one for each date/time you will visualize, and tells the Raster API which collection, item, and asset you want to view, specifying the colormap and colorbar ranges to use for visualization. The API returns a JSON with information about the requested image. Each image will be referred to as a tile.

# Choose a colormap for displaying the tiles
# For more information on Colormaps in Matplotlib, please visit https://matplotlib.org/stable/users/explain/colors/colormaps.html
color_map = "Spectral_r"
# Make a GET request to retrieve information for the first date/time
observation_date_1_tile = requests.get(
    f"{RASTER_API_URL}/collections/{collection_id}/items/{item_id}/tilejson.json?"
    f"&assets={asset_name}"
    f"&color_formula=gamma+r+1.05&colormap_name={color_map.lower()}"
    f"&rescale=0,20"
).json()

# Print the properties of the retrieved granule to the console
observation_date_1_tile
{'tilejson': '2.2.0',
 'version': '1.0.0',
 'scheme': 'xyz',
 'tiles': ['https://earth.gov/ghgcenter/api/raster/collections/epa-ch4emission-yeargrid-v2express/items/epa-ch4emission-yeargrid-v2express-2018/tiles/WebMercatorQuad/{z}/{x}/{y}@1x?assets=total-coal-mines&color_formula=gamma+r+1.05&colormap_name=spectral_r&rescale=0%2C20'],
 'minzoom': 0,
 'maxzoom': 24,
 'bounds': [-129.99999694387628,
  19.99999923487448,
  -60.00000305612369,
  55.00000076512553],
 'center': [-94.99999999999999, 37.5, 0]}
# Make a GET request to retrieve information for the second date/time
observation_date_2 = items_dict[dates[1]]
# Extract collection name and item ID
collection_id = observation_date_2.collection_id
item_id = observation_date_2.id

observation_date_2_tile = requests.get(
    f"{RASTER_API_URL}/collections/{collection_id}/items/{item_id}/tilejson.json?"
    f"&assets={asset_name}"
    f"&color_formula=gamma+r+1.05&colormap_name={color_map.lower()}"
    f"&rescale=0,20"
).json()

# Print the properties of the retrieved granule to the console
observation_date_2_tile
{'tilejson': '2.2.0',
 'version': '1.0.0',
 'scheme': 'xyz',
 'tiles': ['https://earth.gov/ghgcenter/api/raster/collections/epa-ch4emission-yeargrid-v2express/items/epa-ch4emission-yeargrid-v2express-2012/tiles/WebMercatorQuad/{z}/{x}/{y}@1x?assets=total-coal-mines&color_formula=gamma+r+1.05&colormap_name=spectral_r&rescale=0%2C20'],
 'minzoom': 0,
 'maxzoom': 24,
 'bounds': [-129.99999694387628,
  19.99999923487448,
  -60.00000305612369,
  55.00000076512553],
 'center': [-94.99999999999999, 37.5, 0]}

Generate Map

# Initialize the map, specifying the center of the map and the starting zoom level.
# 'folium.plugins' allows mapping side-by-side via 'DualMap'
# Map is centered on the position specified by "location=(lat,lon)"
map_ = folium.plugins.DualMap(location=(38.9, -80.0), zoom_start=6)

# Define the first map layer (January 2018)
map_layer_2018 = TileLayer(
    tiles=observation_date_1_tile["tiles"][0], # Path to retrieve the tile
    attr="GHG", # Set the attribution
    name='January 2018', # Title for the layer
    overlay=True, # The layer can be overlaid on the map
    opacity=0.7, # Adjust the transparency of the layer
)

# Add the first layer to the Dual Map
# This will appear on the left side, specified by 'm1'
map_layer_2018.add_to(map_.m1)

# Define the second map layer (January 2012)
map_layer_2012 = TileLayer(
    tiles=observation_date_2_tile["tiles"][0], # Path to retrieve the tile
    attr="GHG", # Set the attribution
    name='January 2012', # Title for the layer
    overlay=True, # The layer can be overlaid on the map
    opacity=0.7, # Adjust the transparency of the layer
)

# Add the second layer to the Dual Map
# This will appear on the left side, specified by 'm2'
map_layer_2012.add_to(map_.m2)

# Add a layer control to switch between map layers
folium.LayerControl(collapsed=False).add_to(map_)

# Add colorbar
# We can use one of 'generate_html_colorbar' from the 'ghgc_utils' module
# to create an HTML colorbar representation.
legend_html = ghgc_utils.generate_html_colorbar(color_map,rescale_values,label="molecules CH₄/cm²/s")

# Add colorbar to the map
map_.get_root().html.add_child(folium.Element(legend_html))

# Visualize the Dual Map
map_
<<<<<<< local <modified: text/html, text/plain>
Make this Notebook Trusted to load map: File -> Trust Notebook
=======
Make this Notebook Trusted to load map: File -> Trust Notebook
>>>>>>> remote <modified: text/html, text/plain>
>>>>>>> remote <removed>

Observe from this that the southern end of the Appalachian Mountains saw somewhat of a decrease in methane emissions from coal mines between 2012 and 2018.

Calculate Zonal Statistics

To perform zonal statistics, we first need to create a polygon. In this use case, we’ve specified a polygon over the Pittsburgh, Pennsylvania region.

# Give the AOI a name to use in your plot title later on
aoi_name = "Pittsburgh, PA"
# Pittsburgh, PA, USA
aoi = {
    "type": "Feature", # Create a feature object
    "properties": {},
    "geometry": { # Set the bounding coordinates for the polygon
        "coordinates": [
            [
                [-79.4, 39.9], # South-east bounding coordinate
                [-79.4, 40.9], # North-east bounding coordinate
                [-80.5, 40.9], # North-west bounding coordinate
                [-80.5, 39.9], # South-west bounding coordinate
                [-79.4, 39.9]  # South-east bounding coordinate (closing the polygon)
            ]
        ],
        "type": "Polygon",
    },
}

Generate the statistics for the AOI using a function from the ghgc_utils module, which fetches the data and its statistics from the Raster API.

%%time

# Statistics will be returned as a Pandas DataFrame
df = ghgc_utils.generate_stats(items,aoi,url=RASTER_API_URL,asset=asset_name)
df.head(5)
Generating stats...
Done!
CPU times: user 27 ms, sys: 4.2 ms, total: 31.2 ms
Wall time: 956 ms
datetime min max mean count sum std median majority minority unique histogram valid_percent masked_pixels valid_pixels percentile_2 percentile_98 date
0 2020-01-01T00:00:00Z 0.00000000000000073460 1312.80090332031250000000 36.88801574707031250000 69.00000000000000000000 2545.27319335937500000000 204.32702036196778294652 0.00000000005410499132 0.00000000005410499132 0.00000000000000073460 51.00000000000000000000 [[67, 0, 0, 0, 0, 0, 0, 0, 1, 1], [7.345994349... 52.27000000000000312639 63.00000000000000000000 69.00000000000000000000 0.00000000000000244863 1117.67700195312500000000 2020-01-01 00:00:00+00:00
1 2019-01-01T00:00:00+00:00 0.00000000000000075290 1470.95764160156250000000 41.05800247192382812500 69.00000000000000000000 2833.00219726562500000000 228.25951513573318152339 0.00000000005545252799 0.00000000005545252799 0.00000000000000075290 51.00000000000000000000 [[67, 0, 0, 0, 0, 0, 0, 0, 1, 1], [7.528953466... 52.27000000000000312639 63.00000000000000000000 69.00000000000000000000 0.00000000000000250961 1243.22229003906250000000 2019-01-01 00:00:00+00:00
2 2018-01-01T00:00:00+00:00 0.00000000000000078660 1642.84814453125000000000 45.81293487548828125000 69.00000000000000000000 3161.09252929687500000000 255.32128197870619601417 0.00000000005793516014 0.00000000005793516014 0.00000000000000078660 51.00000000000000000000 [[67, 0, 0, 0, 0, 0, 0, 0, 1, 1], [7.866027580... 52.27000000000000312639 63.00000000000000000000 69.00000000000000000000 0.00000000000000262197 1393.42944335937500000000 2018-01-01 00:00:00+00:00
3 2017-01-01T00:00:00+00:00 0.00000000000000159273 1504.92590332031250000000 42.47336196899414062500 69.00000000000000000000 2930.66186523437500000000 234.00194477023049444142 0.00000000011730856564 0.00000000011730856564 0.00000000000000159273 52.00000000000000000000 [[67, 0, 0, 0, 0, 0, 0, 0, 1, 1], [1.592733013... 52.27000000000000312639 63.00000000000000000000 69.00000000000000000000 0.00000000000000530903 1278.66015625000000000000 2017-01-01 00:00:00+00:00
4 2016-01-01T00:00:00+00:00 0.00000000000000322635 1290.34240722656250000000 36.09251403808593750000 70.00000000000000000000 2526.47607421875000000000 194.17536975309201352502 0.00000002500467743971 0.00000000000010761832 0.00000000000000322635 55.00000000000000000000 [[68, 0, 0, 0, 0, 0, 0, 1, 0, 1], [3.226349978... 53.03000000000000113687 62.00000000000000000000 70.00000000000000000000 0.00000000000001075433 1029.93347167968750000000 2016-01-01 00:00:00+00:00
%%time
# %%time = Wall time (execution time) for running the code below

# Generate statistics using the created function "generate_stats" within the bounding box defined by the polygon
stats = {}
for item in items:
    date = item["properties"]["datetime"]  # Get the associated date
    year = date[:4]  # Convert datetime to year
    stats[year] = generate_stats(item, aoi)
CPU times: user 29.4 ms, sys: 102 µs, total: 29.5 ms
Wall time: 1.9 s
%%time

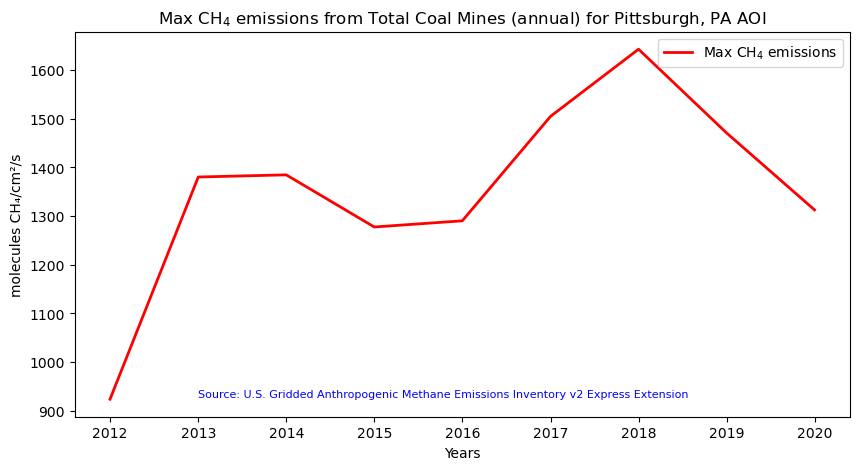

Time-Series Analysis

You can now explore the time series (January 2000 -December 2021) of your chosen asset for the specified AOI. You can plot the data set using the code below:

# Ensure 'datetime' column is in datetime format
df['datetime'] = pd.to_datetime(df['datetime'])

# Sort the DataFrame by the datetime column so the plot displays the values from left to right (2020 -> 2022)
df_sorted = df.sort_values(by="datetime")

# Figure size: 20 representing the width, 10 representing the height
fig = plt.figure(figsize=(10, 5))

# Use which_stat to determine which value you would like to plot in the time series - min, max, mean etc.
which_stat = "max"

plt.plot(
    df["date"], # X-axis: sorted date
    df[which_stat],  # Y-axis: maximum CH4 emission
    color="red", # Line color
    linestyle="-", # Line style
    linewidth=2, # Line width
    label=f"{which_stat.capitalize()} CH$_4$ emissions", # Legend label
)

# Display legend
plt.legend()

# Insert label for the X-axis
plt.xlabel("Years")

# Insert label for the Y-axis
plt.ylabel("molecules CH₄/cm²/s")

# Insert title for the plot
plt.title(f"{which_stat.capitalize()} CH$_4$ emissions from {items[0].assets[asset_name].title} for {aoi_name} AOI")


# Add data citation
plt.text(
    df_sorted["datetime"].iloc[1],           # X-coordinate of the text
    df_sorted[which_stat].min(),             # Y-coordinate of the text

    # Text to be displayed
    f"Source: {collection.title}",
    fontsize=8,                             # Font size
    horizontalalignment="left",              # Horizontal alignment
    verticalalignment="bottom",              # Vertical alignment
    color="blue",                            # Text color
)

# Plot the time series
plt.show()

Summary

In this notebook we have successfully completed the following steps for the STAC collection for the U.S. Gridded Anthropogenic Methane Emissions Inventory dataset:

  1. Install and import the necessary libraries
  2. Fetch the collection from STAC collections using the appropriate endpoints
  3. Count the number of existing granules within the collection
  4. Map and compare the anthropogenic methane emissions for two distinctive months/years
  5. Generate zonal statistics for the area of interest (AOI)
  6. Generate a time-series graph of the anthropogenic methane emissions for a specified region

If you have any questions regarding this user notebook, please contact us using the feedback form.

Back to top
